Lancing UK

Pneumatic Pad Printer

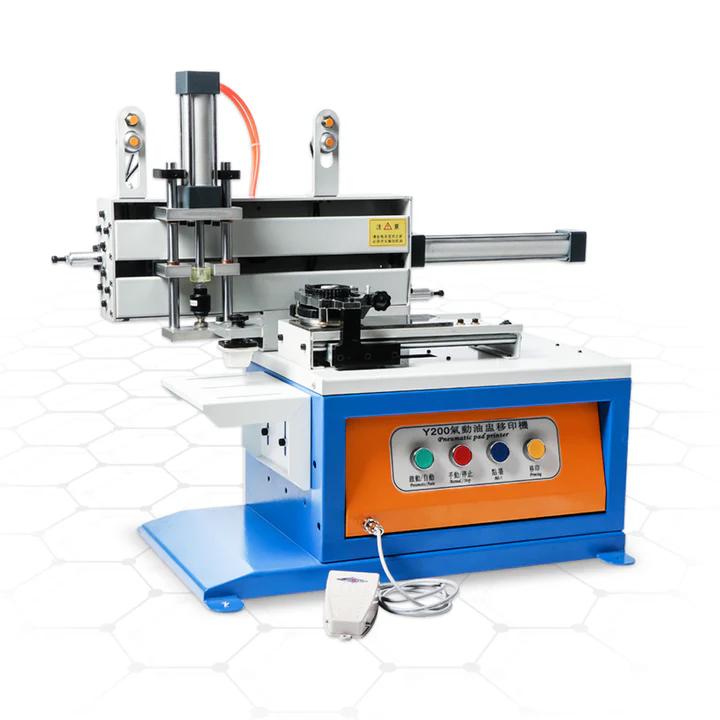

Pneumatic Ink‑Cup Pad Printing Machine


Single‑color pneumatic pad printer with enclosed ink‑cup. Print precise logos, dates and batch codes on caps, bottles, cartons and cans with high repeatability.


View Specs Configure & Quote

  • Up to 1800–2000 prints/hour
  • Max print area 60 × 80 mm; plate size 85 × 200 × 10 mm
  • Ink‑cup Ø70 mm; crisp, clean transfers
  • Works on flat or curved surfaces (metal/plastic/glass)
Automatic L‑sealer shrink wrapper

Key Features

Pneumatic drive

Stable, repeatable impressions with simple controls.

Enclosed ink‑cup

Cleaner operation and reduced solvent loss.

Versatile substrates

Print on metal, plastic, glass, enamel, films and more.

Compact footprint

Approx. 855 × 480 × 640 mm; ~34 kg.

Quick plate changes

Standard blank plate included; custom plates available.

Safety & ergonomics

Two‑hand controls and guarded motion practice recommended.

Technical Specifications

Model Y200 (reference)

Voltage
110/220 V 50–60 Hz
Air pressure
0.3–0.5 MPa
Max print area
60 × 80 mm
Plate size
85 × 200 × 10 mm
Ink‑cup size
Ø70 mm
Throughput
≈ 1800–2000 prints/hour
Worktable load
≤ 1 kg
Machine size
≈ 855 × 480 × 640 mm
Net weight
≈ 34 kg

Applications

Shapes
Flat or curved items
Examples
Bottle caps, cans, jars, small cases, cartons
Coding
Logos, trademarks, dates/batch codes

Specs are indicative; configuration may vary by model and options.

Typical Applications

Cosmetics & personal care

Cap logos and expiry dates.

Food & beverage

Batch/date on cans and jars.

Electronics & gifts

Brand marks on housings and cases.

What’s Included

  • Pad printer base with pneumatic drive
  • Ø70 mm ink‑cup set
  • Blank plate 85×200×10 mm
  • Tool kit & manual

Configure Your Machine


Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

  • Product: bottle/can type & dimensions
  • Bundle pattern (e.g., 2×3, 3×3) & with/without tray
  • Target output (packs/min) and film type
  • Utilities available (power, air) & conveyor height

Enquire now
