Semi Automatic Gear Pump Filling Machine

Semi Automatic Gear Pump Filling Machine


Bench‑friendly gear‑pump filler with built‑in weighing. High flow (up to 36 L/min) handles oils and thicker liquids. Set a target weight for simple, accurate fills.


View Specs Configure & Quote

  • Up to 36 L/min flow
  • Weigh‑by‑fill
  • High accuracy
  • Adjustable nozzle height

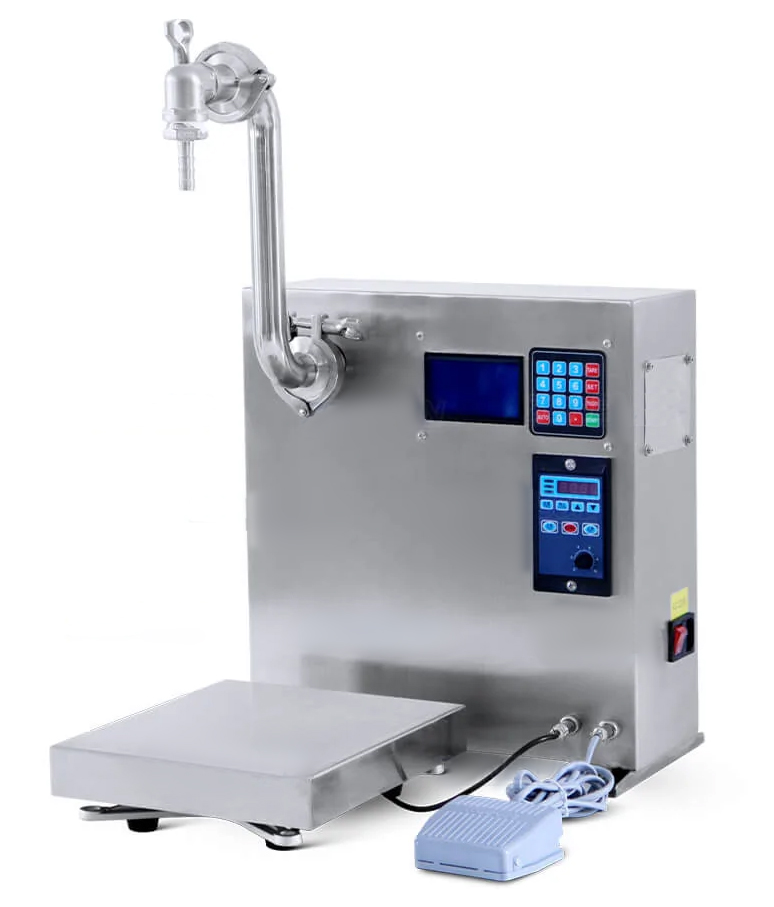

Semi automatic gear pump weighing filler for oils and thick liquids

Key Features

Up to 36 L/min flow

Fast fills for medium–large containers.

Weigh‑by‑fill

Set a target weight; 50 g–50 kg range.

High accuracy

≈1–5 g typical, product‑dependent.

Adjustable nozzle height

Match different bottle sizes.

Digital display

Clear working data and easy adjustment.

Compact power

≈200 W at 110/220 V.

Technical Specifications

Filling System

Model
LUGPW1
Pump type
Gear pump
Max flow rate
≈36 L/min (water)
Weighing range
≈50 g – 50 kg
Filling accuracy
≈1–5 g
Nozzle
Height adjustable

Utilities & Dimensions

Power supply
AC 110/220 V, 50–60 Hz
Rated power
≈200 W
Package size
≈330 × 220 × 360 mm
Package weight
≈16 kg
Controls
Digital display; weigh device
Modes
Manual/auto trigger

Performance depends on product, container, and setup. Ask us for a timed trial.

Typical Applications

Oils & lubricants

Cooking oil, engine oil.

Viscous products

Grease, syrups (flow‑permitting).

General liquids

Mineral water and similar.

What’s Included

  • Main gear‑pump base
  • Integrated weighing device
  • Filling nozzle
  • User manual

Configure Your Machine


Tell us about your application. We’ll confirm compatibility and quote the best configuration.

  • Liquid type & viscosity
  • Target fill weight (g/kg) & accuracy
  • Container dimensions & neck type
  • Required throughput & operator workflow
