Semi Automatic Crimping Machine

Semi Automatic Crimping Machine


Pneumatic perfume spray and collar-ring crimping with interchangeable heads. Handles FEA 13–20 mm sizes and adjustable bottle heights for fast, repeatable sealing.


View Specs Configure & Quote

  • Pneumatic crimping
  • Interchangeable tooling
  • Adjustable height
  • High throughput

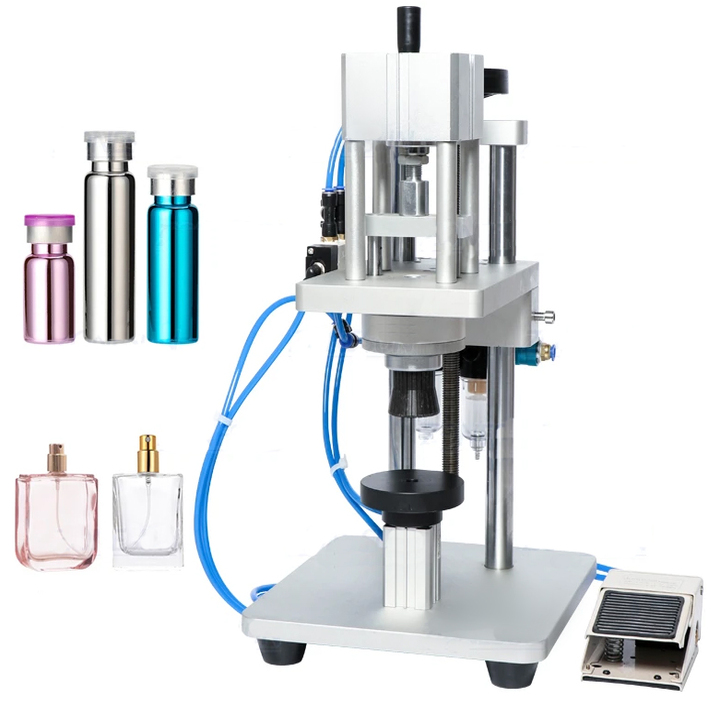

Semi-automatic perfume crimping machine

Key Features

Pneumatic crimping

Air-pressure controlled head delivers consistent, even crimps on spray pumps and collars.

Interchangeable tooling

Swap crimping heads for 13/15/17/18/20 mm (FEA) sizes.

Adjustable height

Work height 60–200 mm suits a wide range of bottles.

High throughput

Up to ~800–1000 bottles/hour depending on operator and setup.

Compact footprint

Benchtop design fits easily into labs and small production rooms.

Clean operation

Simple controls and low air demand (0.35–0.4 MPa).

Technical Specifications

Crimping Unit

Model
LUYG08
Cap types
Perfume spray heads, collar rings (FEA sizes)
Crimp diameters
13/15/17/18/20 mm (interchangeable)
Work height
60–200 mm, adjustable
Throughput
≈800–1000 bottles/hour
Operation
Pneumatic, air‑pressure controlled

Utilities & Dimensions

Air pressure
0.35–0.4 MPa
Power
N/A (pneumatic actuation)
Change parts
Crimping heads per cap size
Options
Additional head sizes; custom tooling
Use with
Perfume filling lines, conveyors
Materials
Tool steel head; alloy frame

Performance depends on bottle, cap, and setup. Ask us for a timed trial.

Typical Applications

Fragrance bottles

Crimping of FEA spray pumps and decorative collar rings.

Body mists & testers

Fast, repeatable crimps for short runs.

Contract packing

Flexible changeover across multiple cap sizes.

What’s Included

  • Pneumatic crimping module
  • One crimping head (size to suit)
  • Basic tool kit & manual
  • Optional: extra heads (13/15/17/18/20 mm)

Configure Your Machine


Tell us about your bottles and closures. We’ll confirm compatibility and quote the best configuration.

  • Bottle type & height range
  • Cap style (spray/collar) and FEA size(s)
  • Target throughput (bph)
  • Compressed air availability (pressure & quality)

Enquire now
