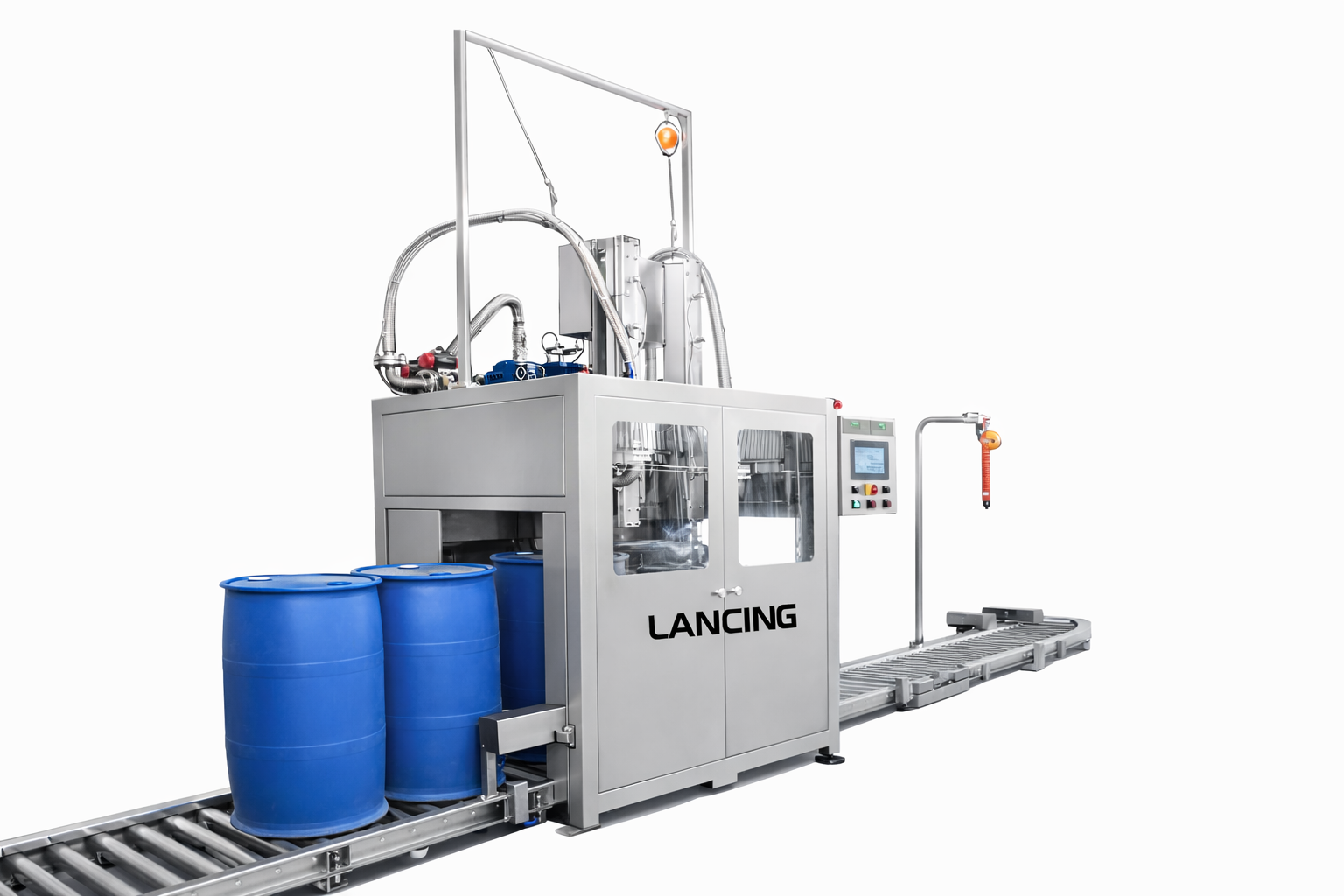

Semi Automatic Bleach Filling Machine

Semi Automatic Bleach Filling Machine


Corrosion‑resistant PP construction and diving nozzles for bleach, disinfectants and other aggressive liquids. Built on a proven platform with configurable heads and PLC control.


View Specs Configure & Quote

  • Corrosion‑resistant build
  • Diving fill heads
  • PLC control
  • Configurable heads
Semi automatic bleach / corrosive liquid filler

Key Features

Corrosion‑resistant build

PP case, nozzles and hoses designed for aggressive chemicals.

Diving fill heads

Cleaner fills for foaming liquids like bleach and toilet cleaner.

PLC control

Simple parameter setting with language options.

Configurable heads

From single‑station semi‑auto to multi‑head automatic platforms.

Integrated pump

Feeds material from storage tank to filler.

Compact footprint

Fits standard chemical packaging cells.

Technical Specifications

Platform Reference (LUYTCR6)

Filling heads
6 (customisable)
Capacity (ref.)
≈18 bottles/min @ 500 ml
Tank
≈35 L
Working pressure
0.4–1 MPa
Control
PLC + HMI
Materials
PP corrosion‑resistant wetted path

Dimensions (Platform)

Machine size
≈900 × 650 × 1650 mm
Net / Gross weight
≈80 kg / 132 kg
Package size
≈780 × 1030 × 1810 mm
Bottle size
Customisable
Options
Language, head count, conveyors
Notes
Semi‑auto versions use 1–2 heads & foot‑pedal trigger

Performance depends on product, container, and setup. Ask us for a timed trial.

Typical Applications

Bleach & disinfectants

Sodium hypochlorite and similar.

Toilet bowl cleaners

Acidic/alkaline chemistries (check compatibility).

Pesticides & cleaners

Corrosive industrial and household liquids.

What’s Included

  • Corrosion‑resistant filler base
  • Diving nozzles set
  • Feed pump & hoses
  • User manual

Configure Your Machine


Tell us about your application. We’ll confirm compatibility and quote the best configuration.

  • Chemical name/concentration & compatibility requirements
  • Container size & material; neck spec
  • Desired head count & target speed
  • Exhaust/containment and operator safety needs

Enquire now
