Lancing UK

Rotary Rotary Infeed

Rotary Rotary Infeed

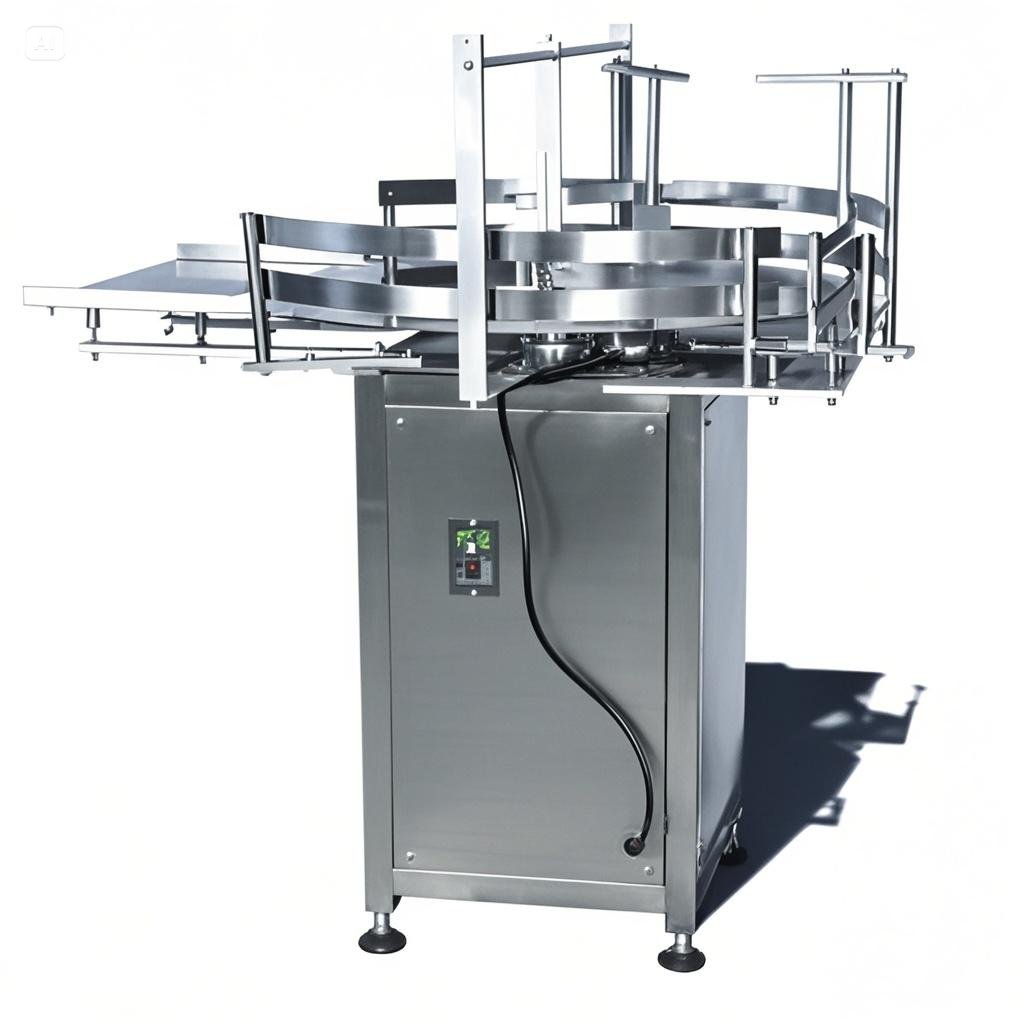

Rotary infeed turntable for feeding bottles onto the production line. Model reference LULP800 with 800 mm plate (10 rpm), capacity up to 2400–3600 bph. Handles bottle diameters 20–100 mm and heights 30–120 mm. Compact 0.2 kW drive, stainless construction.


View Specs Configure & Quote

  • 800 mm rotary plate, 10 rpm
  • 2400–3600 bottles/hour
  • Bottle Ø 20–100 mm; height 30–120 mm
  • 0.2 kW motor; size ~850×850×1500 mm

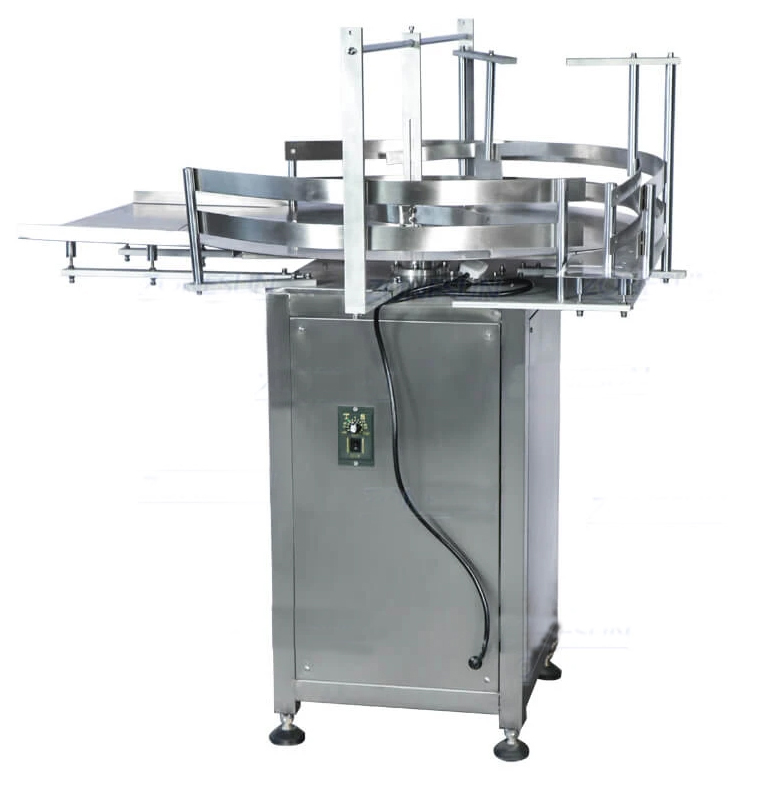

Rotary rotary infeed turntable LP800

Key Features

Smooth bottle feeding

Consistent discharge to your conveyor for stable downstream filling and capping.

Quick setup

Adjustable side rails and speed control to suit different bottle sizes.

Compact & efficient

0.2 kW drive with small footprint reduces energy and space requirements.

Hygienic build

Stainless construction for easy cleaning and long service life.

Line integration

Interfaces with filling, capping and labeling lines.

Technical Specifications

Rotary Infeed (LULP800)

Turntable
800 mm, 10 rpm
Capacity
2400–3600 bottles/hour
Bottle range
Ø 20–100 mm; H 30–120 mm
Motor
0.2 kW
Machine size
≈ 850 × 850 × 1500 mm
Weight
≈ 50 kg

Process & Integration

Function
Bottle accumulation, orienting & discharge
Materials
Stainless steel
Upstream/Downstream
Connects to rinser/filler/capper/labeler modules
Notes
Performance depends on bottle geometry and settings

Specs referenced to LULP800; other diameters available.

Typical Applications

Cosmetics

Lotions, serums, shampoos.

Pharmaceutical

Vials, syrups, nutraceuticals.

Food & beverage

Sauces, oils, drinks.

What’s Included

  • Rotary infeed turntable (800 mm)
  • Adjustable guide rails
  • Control panel
  • Operation & maintenance manual

Configure Your Machine


Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

  • Product: bottle/can type & dimensions
  • Bundle pattern (e.g., 2×3, 3×3) & with/without tray
  • Target output (packs/min) and film type
  • Utilities available (power, air) & conveyor height

Enquire now
