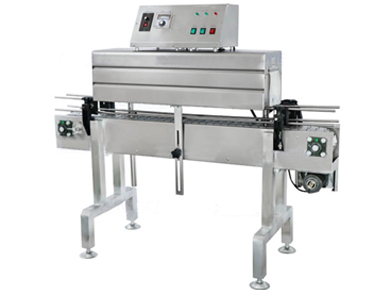

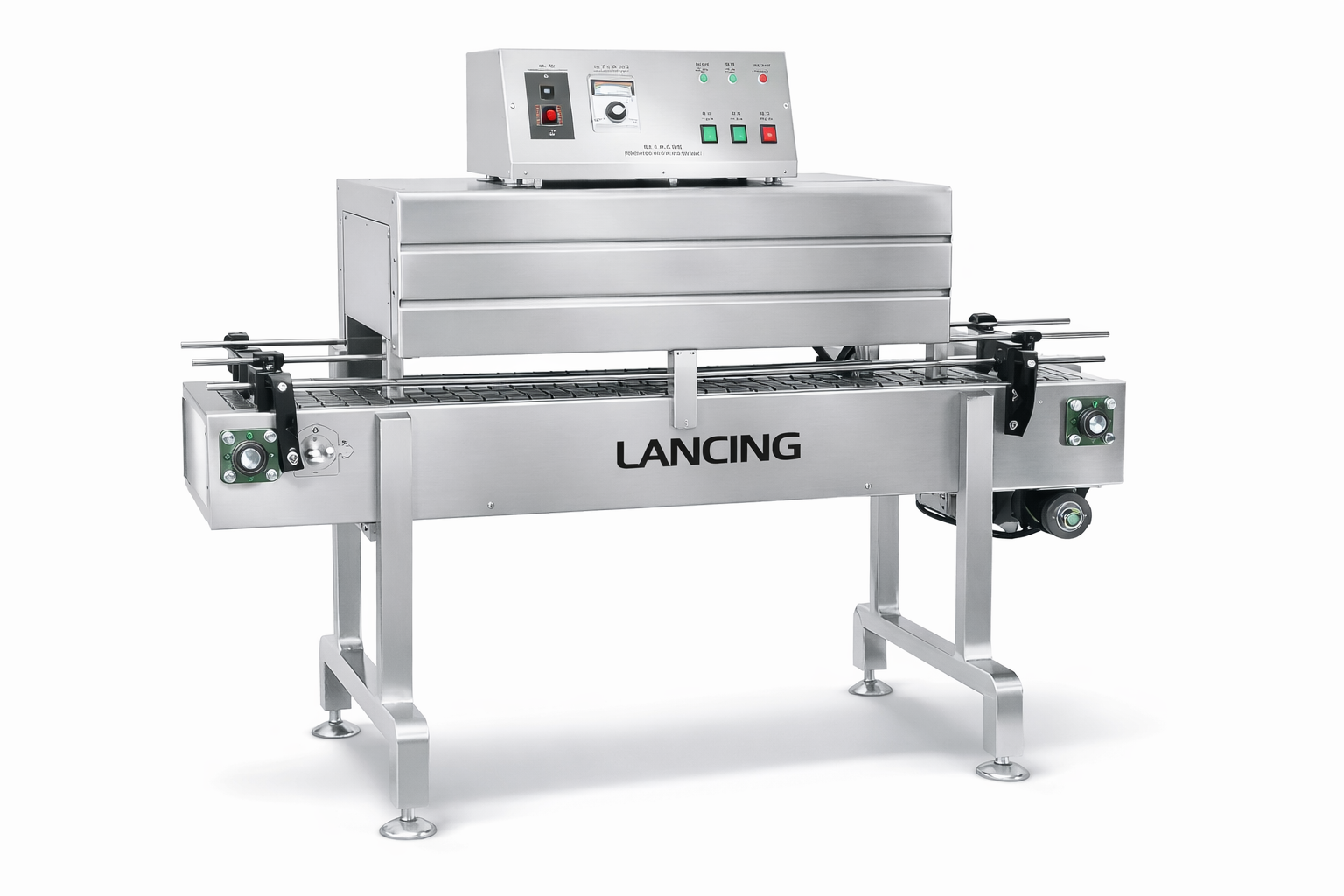

Heat Tunnels

Compact hot‑air shrink tunnel for cap bands and bottle labels. Digital temperature and airflow control with variable‑speed conveyor deliver even heat around the container. Adjustable working height suits different bottle sizes; integrates downstream of sleeve applicators or upstream packaging.

View Specs Configure & Quote

Sealing / conveying speed: up to 15 m/min
Power: 6 kW (220/380 V)
Bottle size: ≤ Ø100 mm, ≤ 350 mm height
Even heat circulation for consistent shrink

Key Features

Hot‑air circulation

Internal air system distributes heat uniformly for tight, wrinkle‑free results.

Digital control

Set tunnel temperature and conveyor speed on an easy front panel.

Adjustable height

Working height adjusts to suit different bottle sizes (up to 350 mm).

Integrated conveyor

Runs inline with filling, capping or sleeve application for continuous packaging.

Compact footprint

Approx. 1500 × 500 × 1270 mm machine size for easy line integration.

Clean & reliable

Stable design for day‑to‑day operation in beverage, cosmetics and household lines.

Technical Specifications

Heat Tunnel (LUSX405 reference)

Voltage: 220 V / 380 V
Power: 6 kW
Speed: Up to 15 m/min
Bottle height: ≤ 350 mm
Bottle diameter: ≤ 100 mm
Machine size: ≈ 1500 × 500 × 1270 mm
Machine weight: ≈ 80 kg

Process & Options

Process: Heat shrink of cap bands or sleeve labels
Controls: Digital temperature & conveyor speed
Integration: Inline with fillers, cappers & applicators
Materials: PVC / PET / OPS shrink films

Specifications based on LUSX405 and may change without notice.

Typical Applications

Beverages

Tamper bands and sleeve labels for water, soft drinks, juices and RTDs.

Cosmetics & personal care

Shrink finishing on shampoos, lotions and sprays.

Household & chemical

Durable sleeves on detergents, cleaners and specialty bottles.

What’s Included

Heat tunnel with digital control panel
Integrated conveyor
Adjustable bottle-height mechanism
Operation & maintenance manual

Configure Your Machine

Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

Product: bottle/can type & dimensions
Bundle pattern (e.g., 2×3, 3×3) & with/without tray
Target output (packs/min) and film type
Utilities available (power, air) & conveyor height
