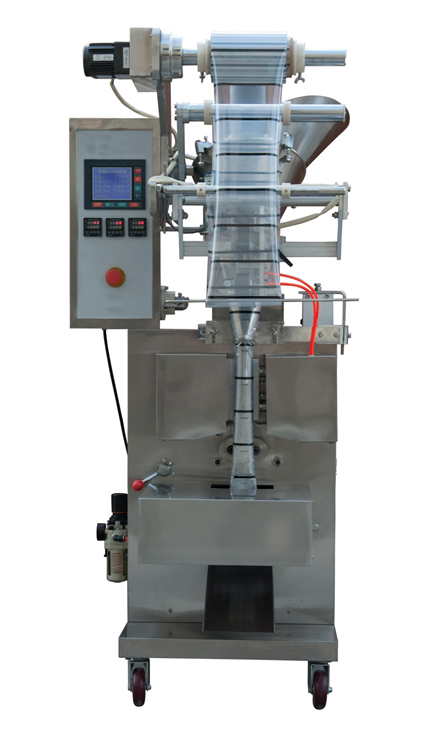

Compact Vertical Form Fill & Seal Machine

Small‑footprint VFFS for powders and granules. Forms the bag from roll film, fills 10–999 g per cycle, then seals with a clean back‑seal (fin seal). Photoelectric cursor tracking and vibration‑assisted feed help maintain consistent packs.

View Specs Configure & Quote

10–15 bags/min typical throughput
Weighing range 10–999 g (±≈2 g*)
Film width ~423 mm; sealed bag width up to ~200 mm
Optional date coder; cursor locator for accurate cutting

Key Features

Compact VFFS platform

Forms, fills and fin‑seals bags from roll film in a small footprint—ideal for bench‑to‑line production.

Stable feeding

Stainless discharge path and strong vibration help powders or granules flow evenly without clogging.

Accurate cutting

Photoelectric cursor locator ensures print registration and consistent bag length.

Flexible films

Works with heat‑sealable films; typical roll width about 423 mm (custom widths available).

Operator options

Optional date coder integrates for inline coding without slowing production.

Line ready

Pairs with upstream weighers and downstream checkweigh, metal detection and cartoning.

Technical Specifications

Model LUFM1000 (reference)

Throughput: 10–15 bags/min (material‑dependent)
Weighing range: 10–999 g (typ. ±≈2 g)
Film width: ≈ 423 mm (customizable)
Sealed bag width: ≈ 200 mm
Back‑seal length: ≈ 300 mm
Horizontal seal: ≈ 210 mm
Voltage / Power: 110/220 V; ~650 W
Machine size: ≈ 634 × 700 × 2042 mm
Machine weight: ≈ 116 kg
Film type: Heat‑sealable film

Typical Materials & Options

Products: Powders & granules (spices, coffee, seeds, hardware, etc.)
Sealing: Back‑seal (fin‑seal) vertical pouch
Registration: Photoeye cursor tracking
Coding: Optional date coder
Notes: Specs are indicative—final configuration to your film & product.

*Accuracy depends on product flow and film; values shown are typical.

Typical Applications

Foods

Spices, coffee, oats, nuts, seeds, dried fruit, condiments.

Nutraceuticals

Powder supplements and blends.

Industrial

Fertilisers, small hardware, electronics components.

What’s Included

Compact VFFS base (LUFM1000‑class)
Roll of heat‑sealable film (~423 mm width)
Photoeye cursor locator
Optional inline date coder
Operation & maintenance manual

Configure Your Machine

Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

Product: bottle/can type & dimensions
Bundle pattern (e.g., 2×3, 3×3) & with/without tray
Target output (packs/min) and film type
Utilities available (power, air) & conveyor height
