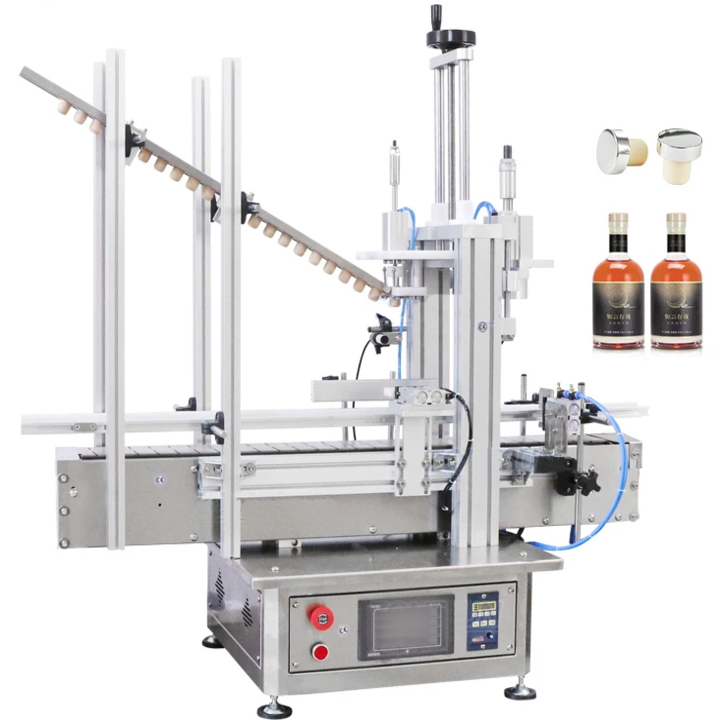

Compact Desktop T‑Cork Press

Compact Desktop T‑Cork Press


Desktop T‑cork pressing machine for liquor and wine bottles. Automatically orients (optional bowl), positions and presses T‑corks into glass bottles with consistent force—ideal for gin, vodka, whisky and syrups.


View Specs Configure & Quote

  • Desktop footprint; easy to position on-line
  • Press-fit T‑cork insertion with adjustable force
  • Optional vibratory bowl for T‑cork sorting
  • Touchscreen control; photoelectric bottle detect
Compact Desktop T‑Cork Press

Key Features

Consistent insertion

Pressing head drives corks to a repeatable depth for tight seals.

Bottle handling

Guides and clamps stabilise glass bottles during pressing.

Cap sorting

Optional vibratory bowl arranges T‑corks for continuous runs.

Quick changeovers

Tool‑less height and guide adjustments.

Compact & quiet

Desktop package suited to craft spirits lines.

Line integration

Works with upstream fillers and downstream labellers.

Technical Specifications

Reference Specs (desktop T‑corker)

Voltage
AC 110/220 V, 50–60 Hz
Speed
≈ 15–30 bottles/min (cork/bottle dependent)
Bottle diameter
≈ 20–100 mm (typical)
Bottle height
≈ 60–300 mm (typical)
Working pressure
0.4–0.6 MPa (if pneumatic assist)

Use & Options

Cap type
T‑corks / press‑fit corks
Industries
Spirits, wine, syrup
Feeding
Manual or vibratory bowl (optional)
Controls
Touchscreen HMI
Notes
Specs vary by configuration

Typical Applications

Food & Beverage

Bottles, jars, pouches and packs.

Cosmetics & Household

Shampoos, lotions, cleaners, sprays.

Healthcare

Vials, nutraceuticals, OTC bottles.

What’s Included

  • Desktop T‑cork press base
  • Adjustable bottle guides & clamps
  • Touchscreen control
  • Optional vibratory bowl (per order)
  • Operation & maintenance manual
    •

Configure Your Machine


Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

  • Product: bottle/can type & dimensions
  • Bundle pattern (e.g., 2×3, 3×3) & with/without tray
  • Target output (packs/min) and film type
  • Utilities available (power, air) & conveyor height

Enquire now
