Compact Four Head Peristaltic Filling Machine

Compact Four Head Peristaltic Filling Machine


Desktop automatic peristaltic filler with 4 nozzles. Each head has an independent pump (≈60 W) delivering up to ≈4000 ml/min; ≈30–50 bpm depending on bottle and liquid.


View Specs Configure & Quote

  • Clean product path
  • 4 independent heads
  • High throughput
  • Electric eye

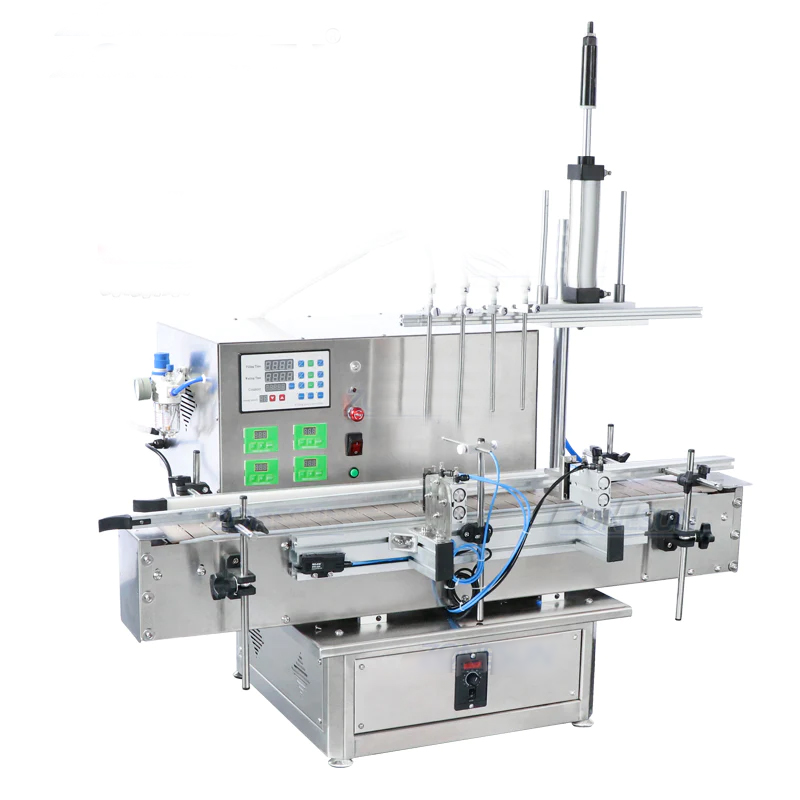

Desktop four-head peristaltic pump automatic liquid filler

Key Features

Clean product path

Liquid only contacts the tubing for fast changeovers.

4 independent heads

Fill different products or volumes per channel (if needed).

High throughput

Up to ≈4000 ml/min per nozzle (water) and ≈30–50 bpm.

Electric eye

Accurate bottle detection for auto cycle.

Compact

≈650 × 430 × 400 mm; ≈55.5 kg.

Belt conveyor

≈1.0 m belt with smooth transfer.

Technical Specifications

Filling System

Model
LUDTPP4F
Nozzles
4 (customisable)
Max flow
≈4000 ml/min per nozzle (water)
Recommended volume
10–500 ml (110 V) / 10–1000 ml (220 V)
Speed
≈30–50 bottles/min
Accuracy
≤±1% (water)

Utilities & Dimensions

Voltage
AC 110/220 V, 50–60 Hz
Power
≈60 W per pump
Air pressure
0.3–0.4 MPa
Belt length
≈1.0 m
Bottle height
<≈220 mm (max 300 mm custom)
Machine size / weight
≈650 × 430 × 400 mm; ≈55.5 kg

Performance depends on product, container, and setup. Ask us for a timed trial.

Typical Applications

Cosmetics & personal care

Lip gloss, toners, essential oils.

Beverages

Juices and flavoured waters (compatibility dependent).

Chemicals

Solvents within tubing compatibility.

What’s Included

  • 4‑nozzle peristaltic filling base
  • Conveyor belt
  • Electric eye & operation panel
  • Tubing starter kit

Configure Your Machine


Tell us about your application. We’ll confirm compatibility and quote the best configuration.

  • Liquid type and tubing material (silicone/TPU/…)
  • Target volume and desired BPM
  • Bottle dimensions and neck finish
  • Utilities (air, power) and line height

Enquire now
