Compact Dropper Screw Capper

Compact Dropper Screw Capper


Automatic dropper and nail‑polish bottle capper with vibratory bowl sorter. Imitates a human hand to place caps gently, then tightens with four rubber wheels for a smooth finish.


View Specs Configure & Quote

  • Vibratory bowl sorter
  • Gentle cap placement
  • Wide format range
  • 20–40 bpm

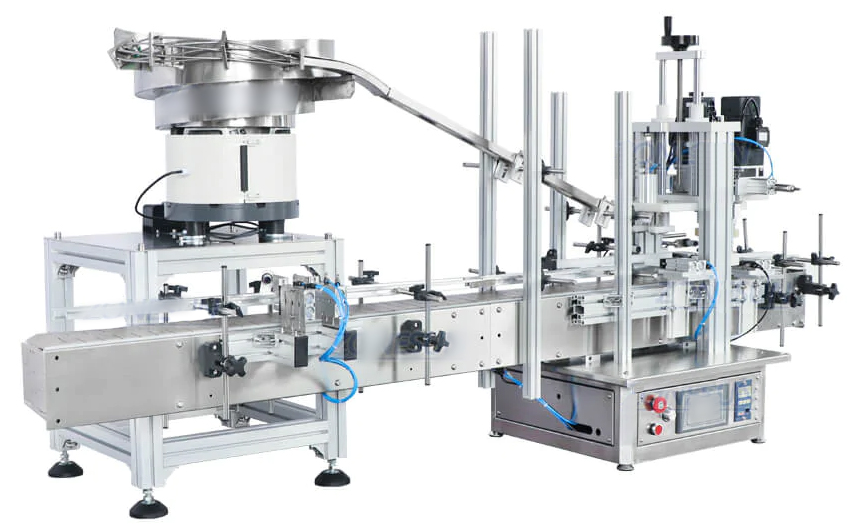

Automatic dropper bottle screw capper with bowl sorter

Key Features

Vibratory bowl sorter

Automates cap orientation and feed for continuous capping.

Gentle cap placement

Human‑hand style pick & place reduces scuffs on caps.

Wide format range

Cap Ø 18–70 mm; bottle height 60–270 mm.

20–40 bpm

Reliable throughput for compact automatic lines.

Optical detection

Sensors coordinate feeding and machine cycles.

Chain conveyor

Smooth, stable transfer through the capping head.

Technical Specifications

Capping System

Model
LUXG1870R
Working speed
20–40 bottles/min (format‑dependent)
Cap diameter
18–70 mm
Bottle height
60–270 mm
Capping method
4‑wheel screw tightening
Control
Touchscreen panel

Utilities & Dimensions

Voltage
AC 220/110 V, 50–60 Hz
Air pressure
0.4–0.6 MPa
Conveyor length
≈1117 mm
Air connection
OD 8 mm
Package size/weight
≈1150×640×1110 mm / ≈112 kg
Integration
Upstream filler; downstream labeller/inspector

Performance depends on bottle, cap, and setup. Ask us for a timed trial.

Typical Applications

Essential oils & serums

Dropper closures with precise tightening.

Nail polish & cosmetics

Compact automatic capping within small cells.

Pharma & nutraceutical

Small vials and tinctures (cap‑fit permitting).

What’s Included

  • Capping base with 4‑wheel head
  • Vibratory bowl sorter (customized to cap)
  • Chain conveyor
  • User manual & tool kit

Configure Your Machine


Tell us about your bottles and closures. We’ll confirm compatibility and quote the best configuration.

  • Bottle height/diameter and material
  • Cap diameter and style (dropper/pump)
  • Required speed (bpm)
  • Compressed air supply & line height
