Chamber Sealing Machine

Chamber Sealing Machines


Semi‑automatic chamber shrink wrapper with integrated L‑sealing, film cutting and shrinking in one compact unit. Ideal for boxes and small items (perfume, cosmetics, electronics). Control panel lets you set sealing (0–3 s) and shrink times (0–30 s) for clean, tight results. Handles POF/PVC films; up to 800 packs/hour depending on product and film.


View Specs Configure & Quote

  • Up to 800 packs/hour (product & film dependent)
  • Sealing 0–3 s; Shrink 0–30 s
  • Max package size 550 × 400 × 230 mm
  • POF / PVC films, 0.015–0.08 mm

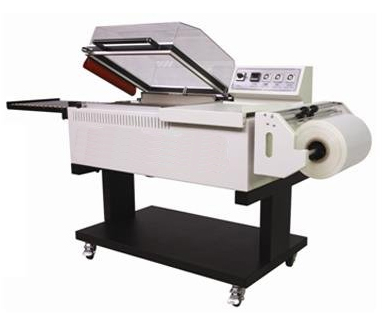

Chamber sealing shrink wrapper

Key Features

Integrated tunnel‑style chamber

Heated chamber shrinks the film immediately after L‑sealing & cutting for compact, efficient operation.

Adjustable cycles

Set sealing (0–3 s) and shrink (0–30 s) times from the control panel to suit different films and products.

Accurate film feed

Dispenser/roll holder with tension control and guides; dual adjustment to dial‑in package size precisely.

Versatile packaging

Suitable for boxes and irregular items; clean, glossy finish on POF/PVC films.

Compact footprint

Single machine reduces line length; ideal for work cells and small‑scale production.

Durable build

Designed for long continuous runs with consistent seals.

Technical Specifications

Chamber Sealer (LUSX5540)

Voltage / Power
AC 220–240 V, 50–60 Hz / 4.57 kW
Packaging speed
0–800 pcs/h
Sealing time
0–3 s
Shrink time
0–30 s
Max package size
550 × 400 × 230 mm
Film
POF / PVC, 0.015–0.08 mm
Machine size
1570 × 720 × 1060(1320) mm
Net weight
≈ 128 kg

Process & Materials

Cycle
Place item → seal & cut → chamber shrink → remove
Typical products
Perfume/phone/earphone boxes, small kits
Controls
Panel for temperature & timing adjustment
Film roll holder
With dispenser & adjustable guides

Specifications based on the LUSX5540 datasheet and may change without notice.

Typical Applications

Cosmetics & perfume

Premium boxes and gift sets with glossy, protective shrink.

Consumer electronics

Mobile phone and earphone boxes; tamper‑evident bundles.

Small goods & accessories

Stationery, craft kits, components and more.

What’s Included

  • Chamber shrink sealer (LUSX5540)
  • Film dispenser & roll holder with guides
  • Control panel with timer & temperature settings
  • Starter consumables
  • Operation & maintenance manual

Configure Your Machine


Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

  • Product: bottle/can type & dimensions
  • Bundle pattern (e.g., 2×3, 3×3) & with/without tray
  • Target output (packs/min) and film type
  • Utilities available (power, air) & conveyor height
