Carton Sealing

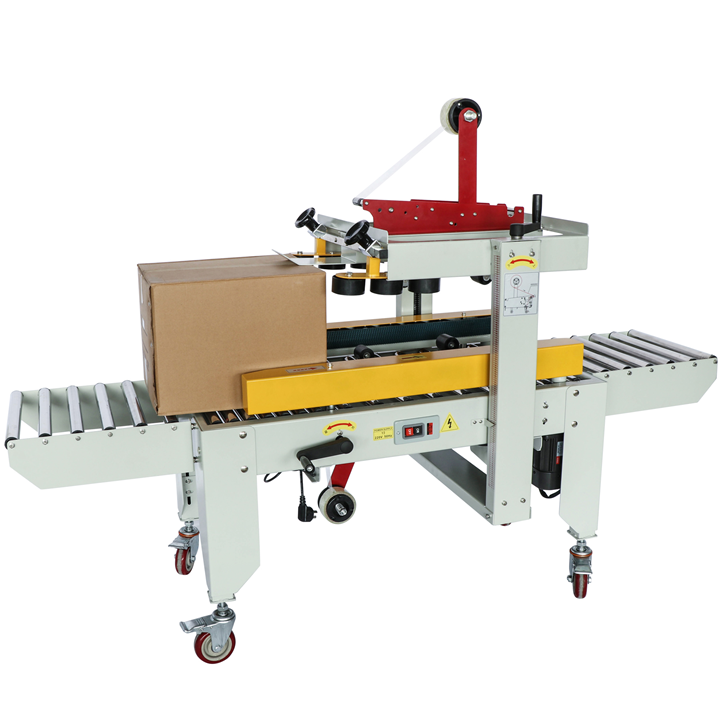

Casetaper

Automatic carton sealing (top & bottom) with quick size change and high‑grip side belts.

View Specs Configure & Quote

Automatic top & bottom taping
20–40 cartons/min throughput
36–72 mm tape width
Fast manual size change

Key Features

Stable side‑belt drive for square seals

Adjustable work surface height 580–750 mm

Compact footprint for end‑of‑line work

Easy integration with infeed/outfeed conveyors

Technical Specifications

Key Parameters

Model: LUFK3040
Voltage: 220 V / 50 Hz
Power: 240 W
Working Speed: 20–40 cartons/min

Additional Data

Tape Width: 36–72 mm
Max / Min Package Size: 300×400 mm / 80×90 mm
Work Surface Height: 580–750 mm adjustable
Dimension / Weight: 1570×650×1660 mm / 114 kg

Typical Applications

3PL & Fulfilment

End‑of‑line case sealing

Food & Beverage

Retail case taping

General Manufacturing

Consistent box closures

What’s Included

Main machine with control panel
Conveyor/fixtures as pictured (where applicable)
Operator manual
Basic spare kit (where applicable)

Configure Your Casetaper

Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

Product & package dimensions
Target throughput (units/min)
Utilities available (power, air) & line height
Any coding/inspection you need inline

Enquire now

Get Appointment

Contact our Office

About Us

Lancing have been specialising in the manufacture of both semi automatic and fully automatic machinery for many years. Our location in the South East..

Current Offers

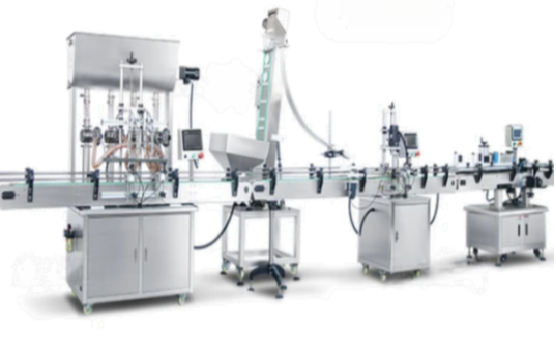

Fully Automatic Water Bottling Line
