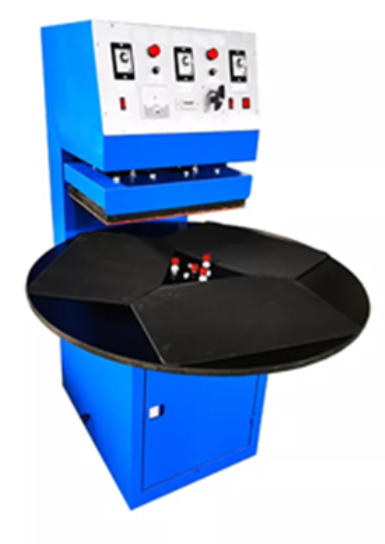

Blister Packing Machine

Blister Packing

Rotary‑table blister sealing for hardware, toys and small consumer goods — visible, tamper‑resistant packs.

View Specs Configure & Quote

Rotary table for efficient cycling
Sealing power 1500 W
Pressure board 500×300 mm
Max package height 150 mm

Key Features

Compact footprint with turntable Ø1000 mm

Suitable for dust‑ and moisture‑resistant packs

Simple controls; AC 220/50 or 110/60

Technical Specifications

Key Parameters

Model: XBF‑500
Voltage: AC 220/50 or 110/60
Sealing Power: 1500 W
Pressure Board Area: 500×300 mm
Turntable Diameter: Ø1000 mm

Additional Data

Max Package Height: 150 mm
Max Conveyor Loading: 110 kg
External Dimensions: 920×1070×1520 mm
Net Weight: 70 kg

Typical Applications

Hardware & Toys

Sealed blister packs for retail

Stationery & Small Goods

Visible, tamper‑resistant packs

Aftermarket

Carded components and kits

What’s Included

Main machine with control panel
Conveyor/fixtures as pictured (where applicable)
Operator manual
Basic spare kit (where applicable)

Configure Your Blister Packing

Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

Product & package dimensions
Target throughput (units/min)
Utilities available (power, air) & line height
Any coding/inspection you need inline

Enquire now
