Automatic Vacuum Filling Machine

Automatic Vacuum Filling Machine


Full‑automatic vacuum level filler for perfumes, eyewash and low‑viscosity liquids. Vacuum back‑suction controls the liquid level precisely and protects fragrance integrity.


View Specs Configure & Quote

  • Vacuum level control
  • 4 filling heads
  • Gentle on aromatics
  • Pneumatic drive

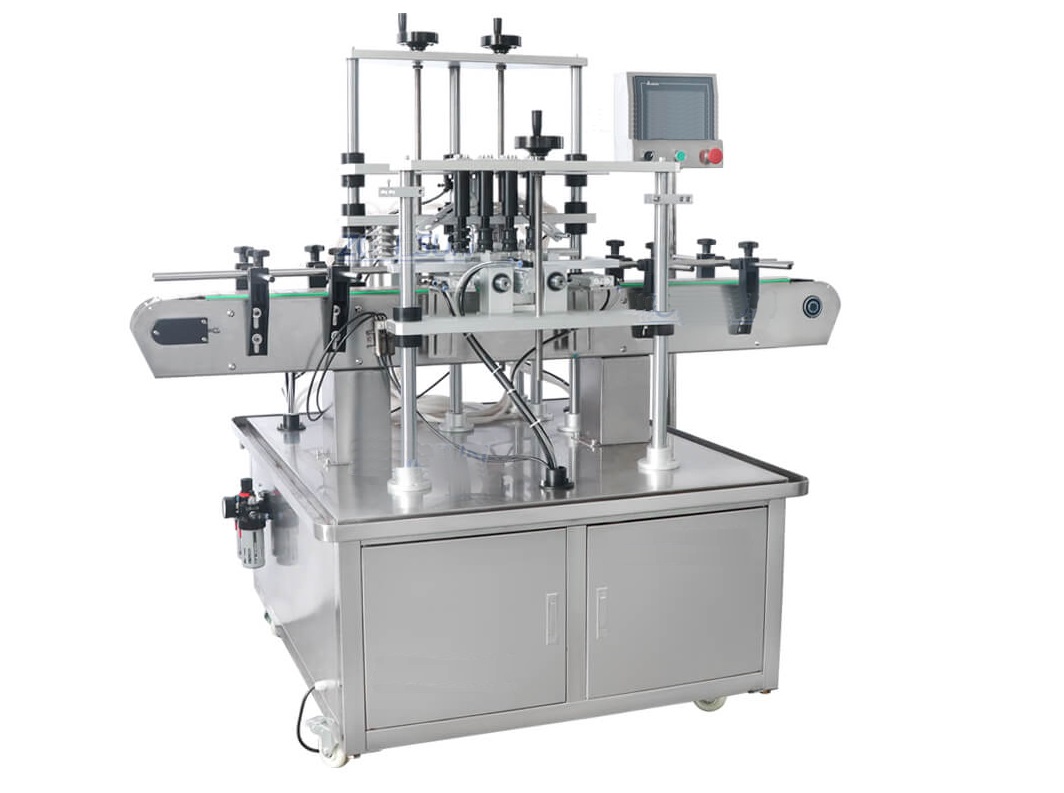

Automatic vacuum perfume / eyewash level filling machine LUYTZL4A

Key Features

Vacuum level control

Back‑suction keeps fills precise and tidy; ±1 mm liquid level accuracy.

4 filling heads

Increase throughput with multi‑nozzle filling; custom head counts available.

Gentle on aromatics

Vacuum method reduces volatilization losses for perfumes.

Pneumatic drive

Works with 0.5–0.8 MPa air; integrates with auto cappers/labelers.

20–40 bpm

Typical speed with small bottles; product and setup dependent.

Viscosity up to ~20 cPs

Optimized for water‑like products.

Technical Specifications

Filling & Control

Model
LUYTZL4A
Filling heads
4 (customizable)
Liquid level accuracy
±1 mm
Air pressure
0.5–0.8 MPa
Working speed
≈20–40 bottles/min
Viscosity window
≤ ~20 cPs

Formats & Integration

Bottle height
≤ 250 mm
Suitable liquids
Perfume, eyewash, cosmetics, milk/water‑like fluids
Drive
Pneumatic with vacuum tank
Options
Line sync with capping/labeling
Contact parts
Non‑metal as required
Cleanability
Simple rinsing & vacuum line purge

Performance depends on product, container, and setup. Ask us for a timed trial.

Typical Applications

Fragrance

EDP/EDT perfumes and colognes.

Cosmetics & pharma

Skin toners, eyewash, alcohol‑based sanitizers.

Food

Water‑like beverages (compatibility dependent).

What’s Included

  • Vacuum filling base with 4 nozzles
  • Vacuum tank & control set
  • Air prep unit
  • User manual

Configure Your Machine


Tell us about your application. We’ll confirm compatibility and quote the best configuration.

  • Bottle volume/height and neck style
  • Target bpm and required nozzle count
  • Liquid properties (volatility/viscosity)
  • Line integration (capping/labeling)
