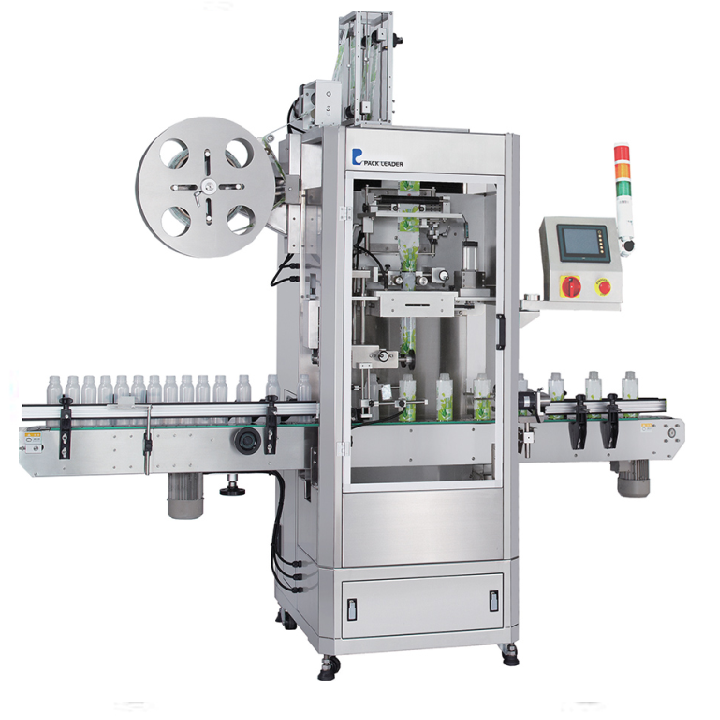

Automatic Sleeve Applicator Machines

High‑speed shrink sleeve labeling for round, square, or oval bottles. The LUSTB150 automatically feeds, positions, and cuts PET/PVC/OPS film sleeves, then hands off to a shrink unit for a tight, 360° finish. Touchscreen PLC control simplifies changeovers and ensures consistent placement on production lines.

View Specs Configure & Quote

Up to 150 bottles/min (label‑dependent)
Automatic sleeve feed, position & cut
PET / PVC / OPS films, 0.03–0.13 mm
Bottle Ø 28–125 mm; height 30–280 mm

Key Features

High-speed sleeve application

Applies shrink sleeves at up to 150 bottles/min (dependent on label length and container).

Precision registration

±1.5 mm sleeve placement accuracy with stable bottle handling.

Wide container range

Handles Ø 28–125 mm and heights from 30–280 mm; round, square, or oval bottles.

Flexible films

Sleeves in PET/PVC/OPS from 0.03–0.13 mm for full‑body, partial, or tamper‑evident bands.

User‑friendly PLC

Touchscreen setup and recipe storage for quick changeovers.

Line integration

Interfaces with steam or hot‑air shrink tunnels and upstream filling/capping.

Technical Specifications

Applicator (LUSTB150)

Speed: Up to 150 bottles/min
Voltage: 220 V
Power: 1.5 kW
Bottle diameter: Ø 28–125 mm
Bottle height: 30–280 mm
Label length: 30–250 mm
Label thickness: 0.03–0.13 mm
Materials: PET / PVC / OPS
Core I.D.: 5"–10"
Conveyor length: 2 m (standard)
Machine size: 2100 × 850 × 2000 mm
Machine weight: ≈ 400 kg
Placement accuracy: ±1.5 mm

Materials & Line Options

Sleeve films: PET / PVC / OPS
Shrink unit: Steam or hot‑air tunnel (optional)
Containers: Round / square / oval bottles
Applications: Beverage, cosmetics, personal care, household
Utilities: Check power/air per tunnel spec
Notes: Throughput depends on label size and container

Specifications based on the LUSTB150 datasheet. Subject to change without notice.

Typical Applications

Beverages

Full‑body sleeves and tamper bands for water, soft drinks, juices, RTDs.

Cosmetics & personal care

Decorative 360° branding for shampoo, lotion, and spray bottles.

Household & chemical

Durable sleeves on detergents, cleaners, and specialty containers.

What’s Included

Automatic sleeve applicator (LUSTB150)
Shrink tunnel (steam or hot‑air) – optional
Touchscreen HMI & control cabinet
2 m conveyor and basic infeed/discharge
Operation & maintenance manual

Configure Your Machine

Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

Product: bottle/can type & dimensions
Bundle pattern (e.g., 2×3, 3×3) & with/without tray
Target output (packs/min) and film type
Utilities available (power, air) & conveyor height
