Automatic Servo Filling Machine

Automatic Servo Filling Machine


High‑speed servo piston filler with following nozzles that track bottles on the move. Set volume directly on the touchscreen; electric‑eye detection and a feeding pump help maintain accuracy at speed (≈40–80 bpm).


View Specs Configure & Quote

  • Following nozzles
  • Servo piston dosing
  • Wide volume options
  • Bottle window

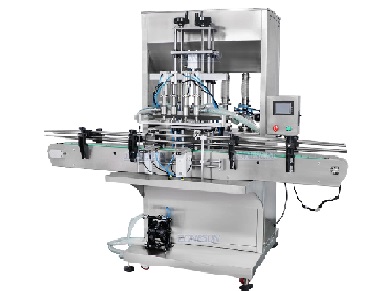

Servo motor tracking/following nozzle piston filling machine

Key Features

Following nozzles

Nozzles follow bottles as they move, increasing throughput.

Servo piston dosing

Enter the volume on the HMI—no timing required.

Wide volume options

5–100 / 10–300 / 50–500 / 100–1000 ml modules.

Bottle window

Ø30–100 mm by 40–250 mm height.

Touchscreen HMI

Real‑time parameters; multi‑language UI.

Automatic feeding pump

Large‑flow gear pump supplies product to the filler.

Technical Specifications

Filling System

Model
LUSV6X
Pump type
Piston (servo‑driven)
Volume modules
5–100 / 10–300 / 50–500 / 100–1000 ml
Working speed
≈40–80 bottles/min (product‑dependent)
Bottle diameter
≈30–100 mm
Bottle height
≈40–250 mm

Utilities & Dimensions

Voltage
110/220 V, 50–60 Hz
Power
≈6 kW
Machine size (pkg.)
≈2210 × 1260 × 2220 mm
Package weight
≈950 kg
Nozzle count
Customisable multiple heads
Controls
Touchscreen + electric eye

Performance depends on product, container, and setup. Ask us for a timed trial.

Typical Applications

Food

Honey, peanut butter, ketchup, juices.

Personal care

Shampoo, gels, creams.

Household

Detergents and cleaners.

What’s Included

  • Servo piston filler base with tracking rail
  • Touchscreen HMI & electric eye
  • Feeding gear pump
  • Operation manual

Configure Your Machine


Tell us about your application. We’ll confirm compatibility and quote the best configuration.

  • Product viscosity & particulate content
  • Target volume and required BPM
  • Bottle dimensions & neck finish
  • Desired head count and conveyor height

Enquire now
