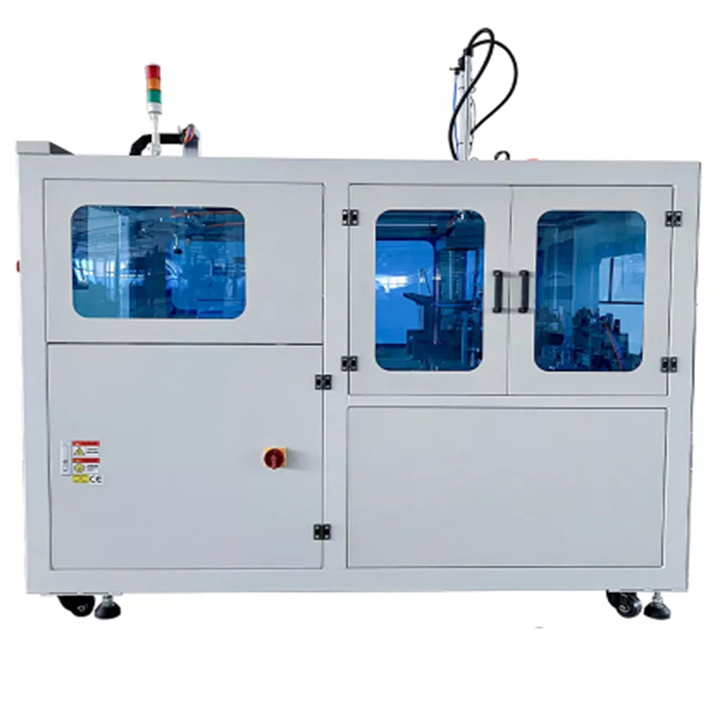

Automatic Cartonising Machines

Fully automatic carton forming from flat cardboard: feeds sheets, folds along scored lines and staples to create rigid boxes. PLC touchscreen with real‑time status, pneumatic actuators for reliable folding, and integrated takeaway conveyor. Typical output 600–800 cartons/hour, depending on size and material.

View Specs Configure & Quote

600–800 cartons/hour (size dependent)
Flat sheet feed, fold & staple in one pass
PLC touchscreen with multi‑language UI
Single‑layer corrugated ≥ 2 mm; 1370 kPa strength

Key Features

Automatic sheet feed

Air nozzles pick and place flat cardboard sheets onto the forming station to reduce manual handling.

Precision folding

Pneumatic tooling folds along pre‑scored lines for consistent, square cartons with ±0.2% repeatability.

Stapling module

High‑quality stapling head fixes panels at programmed positions to create a rigid, durable box.

Touchscreen PLC

Real‑time status and multi‑language UI simplify setup, changeovers and training.

Integrated discharge

Takeaway conveyor for finished cartons streamlines hand‑pack or downstream automation.

Built for corrugated

Handles single‑layer corrugated ≥ 2 mm and cartons rated to 1370 kPa strength.

Technical Specifications

Carton Former (LUBFM2)

Working capacity: 600–800 pcs/h
Voltage / Power: 220 V 60 Hz / 3.5 kW
Air pressure: 0.6–0.8 MPa
Air consumption: ≈ 450 NL/min
Carton size: Customized
Carton thickness: Single‑layer corrugated ≥ 2 mm
Carton strength: 1370 kPa
Repeatability: Error between cartons ±0.2%
Machine size: ≈ 2200 × 2200 × 2000 mm
Machine weight: ≈ 780 kg

Process & Options

Process: Sheet feed → folding → stapling → discharge
Controller: PLC with touchscreen HMI
Utilities: 220 V power, compressed air 0.6–0.8 MPa
Customization: Tooling per carton size & staple pattern
Integration: Interfaces to pack stations and case packing
Safety: Guarding & E‑stop per CE norms (config‑dependent)

Specifications based on the LUBFM2 datasheet and may change without notice.

Typical Applications

E‑commerce & postal

Folding corrugated mailers and shippers with consistent staple patterns.

Hardware & components

Sturdy boxes for accessories, fixtures and spare parts.

Daily chemical & FMCG

Cartons for household and personal‑care goods.

What’s Included

Automatic carton former LUBFM2 with PLC HMI
Air preparation & pneumatic kit (tubing, valves)
Stapling head and starter consumables
Discharge conveyor
Operation & maintenance manual

Configure Your Machine

Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

Product: bottle/can type & dimensions
Bundle pattern (e.g., 2×3, 3×3) & with/without tray
Target output (packs/min) and film type
Utilities available (power, air) & conveyor height
