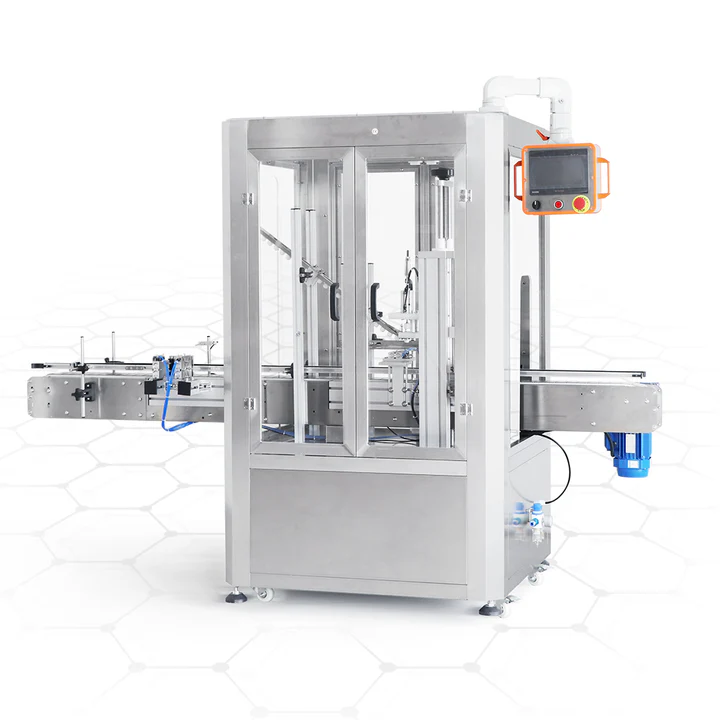

Automatic T‑Cork Press Capping Machine

Automatic T‑Cork Press Capping Machine


Automatic linear T‑cork press for wine & spirits. LUXG16D2 uses a customised pressing head and optional vibratory bowl to insert T‑corks at 20–60 bottles/min.


View Specs Configure & Quote

  • 20–60 bottles/min (material‑dependent)
  • Bottle Ø 20–100 mm; height 30–300 mm
  • Customised pressing head for T‑corks
  • Working pressure 0.4–0.6 MPa
Automatic T‑Cork Press Capping Machine

Key Features

Pressing head

High‑force press ensures consistent cork insertion.

Cap guide rail

Arranges T‑corks before pressing; removable if not needed.

Photoelectric control

Detects bottles to automate cycle.

Chain conveyor

Customisable width for stable transfer.

Touchscreen HMI

Simple setup; with/without bowl sorter options.

Dust cover option

Hygienic enclosure available on request.

Technical Specifications

Model LUXG16D2 (reference)

Working voltage
AC 220/110 V, 50–60 Hz
Working speed
20–60 bottles/min
Bottle height
30–300 mm
Bottle diameter
20–100 mm
Cap diameter
Customised
Working pressure
0.4–0.6 MPa
Machine size
≈ 1970 × 1070 × 2010 mm
Machine weight
≈ 246 kg

Process & Options

Cap feeding
Optional vibratory bowl sorter
Conveyor
Chain conveyor with guides
Safety
Dust cover optional
Integration
Fillers, labelers, inspection
Notes
Specs may vary by cork & bottle

Typical Applications

Beverage & Alcohol

Beer, cider, spirits, wine, soft drinks.

Cosmetics & Personal Care

Sprays, lotions, shampoos, serums.

Household & Chemical

Cleaners, oils and speciality products.

What’s Included

  • Automatic T‑cork press capper base
  • Chain conveyor with guides
  • Touchscreen control
  • Optional vibratory bowl cap feeder (per order)
  • Operation & maintenance manual
    •

Configure Your Machine


Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

  • Bottle Ø & height; neck finish
  • T‑cork style & size
  • Target output (bpm)
  • Utilities (power/air)
  • Hygiene options (dust cover)
