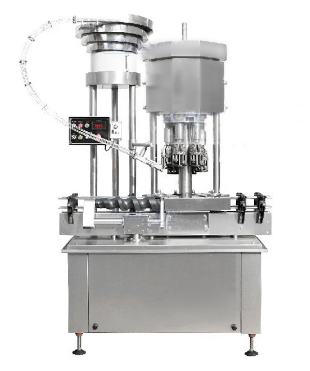

Automatic ROPP Capping Machine

Automatic ROPP Capping Machine


Inline pilfer‑proof (ROPP) capping for glass bottles. LUXG440Z removes the rotary table for straight‑line handling and adds bottleneck support for delicate containers.


View Specs Configure & Quote

  • ≈ 1000 bottles/hour (reference)
  • Inline handling; no rotary table
  • Bottleneck support for soft or delicate bottles
  • Cap size φ25–38 mm; bottle height ≈ 150–320 mm
Automatic ROPP Capping Machine

Key Features

Pilfer‑proof sealing

Crimp‑rollers form tamper‑evident aluminum closures.

Inline layout

Straight‑line conveyor simplifies format changes.

Cap sorting

Vibratory bowl feeds and orients caps.

Neck support

Support device stabilizes bottles during crimping.

Touchscreen control

Quick setup and monitoring.

Olive oil & spirits

Ideal for oils, whisky, liqueurs and more.

Technical Specifications

Model LUXG440Z (reference)

Voltage
110/220 V, 50–60 Hz
Power
≈ 1 kW
Capacity
≈ 1000 BPH
Cap size
φ25–38 mm
Bottle height
≈ 150–320 mm
Machine size
≈ 3550 × 1700 × 2250 mm
Package weights
≈ 640 kg (main) + 123 kg (bowl)

Process & Options

Container
Glass bottles for oils & spirits
Handling
Inline conveyor with neck support
Cap feed
Vibratory bowl & guide rails
Integration
Pairs with filling / labelling
Notes
Specs vary by closure & bottle

Typical Applications

Beverage & Alcohol

Beer, cider, spirits, wine, soft drinks.

Cosmetics & Personal Care

Sprays, lotions, shampoos, serums.

Household & Chemical

Cleaners, oils and speciality products.

What’s Included

  • Inline ROPP capper base
  • Vibratory bowl cap sorter
  • Neck support device
  • PLC touchscreen
  • Operation & maintenance manual
    •

Configure Your Machine


Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

  • Bottle Ø & height; neck finish
  • ROPP cap diameter & liner
  • Target output (BPH)
  • Utilities (power/air)
  • Change parts & line integration
