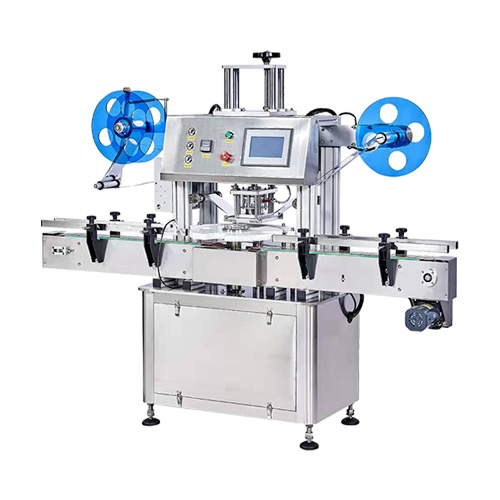

Automatic Foil Sealing Machine

Foil Sealer

Automatic aluminum‑foil bottle sealing with 1–4 heads for higher throughput.

View Specs Configure & Quote

Automatic film placement & heat sealing
1–4 sealing heads (custom)
Up to 300 °C
Round/square mouth support

Key Features

Works with PP/PE/PET/PS + aluminum foil

Customizable sealing diameter (50–250 mm)

Integrated digital temperature control

Solid frame with accessible maintenance points

Technical Specifications

Key Parameters

Model: LUFKR2T
Voltage: 110 / 220 V
Working Speed: ≈ 900–1200 BPH
Heads: 1 / 2 / 3 / 4 (custom)
Compatible Films: PP, PE, PET, PS, Aluminum foil

Additional Data

Heating Temperature: 0–300 °C
Sealing Diameter: 50–250 mm (customizable)
Air Pressure: 4–8 kg/cm²
Machine Size / Weight: 2500×1000×1500 mm / ≈ 220 kg

Typical Applications

Food & Dairy

Foil seals on jars and tubs

Chemicals

Barrier seal to prevent leaks

Cosmetics

Hygienic tamper‑evident seal

What’s Included

Main machine with control panel
Conveyor/fixtures as pictured (where applicable)
Operator manual
Basic spare kit (where applicable)

Configure Your Foil Sealer

Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

Product & package dimensions
Target throughput (units/min)
Utilities available (power, air) & line height
Any coding/inspection you need inline
