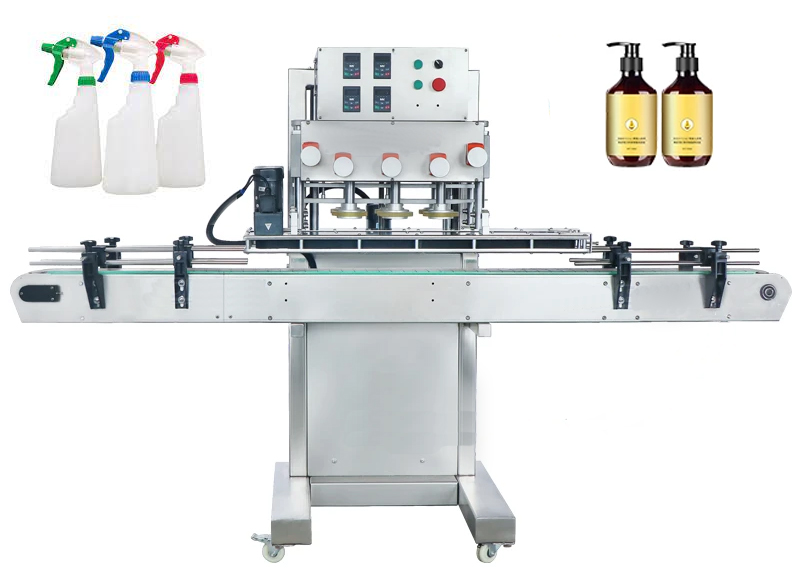

Automatic Belt (Spindle) Screw Capping Machine

Automatic Belt (Spindle) Screw Capping Machine


High‑speed inline screw capping for round plastic bottles. LUXG440B uses guided side‑belt transport and optional cap elevator to achieve 3000–5000 BPH.


View Specs Configure & Quote

  • 3000–5000 bottles/hour (material‑dependent)
  • Adjustable guiding conveyor for accurate clamping
  • Optional cap elevator or vibratory bowl feeder
  • For bottle Ø 35–120 mm; height 60–200 mm
Automatic Belt (Spindle) Screw Capping Machine

Key Features

Guiding conveyor

Clamps bottles for stable, accurate torque application.

Touchscreen HMI

Intuitive parameter setup and recipe storage.

High‑speed drive

Continuous motion for higher throughput.

Cap feeding options

Choose cap elevator or vibratory bowl.

Line integration

Syncs with fillers and labelers via encoder.

Custom heads

Capping head quantity customizable to capacity.

Technical Specifications

Model LUXG440B (reference)

Voltage
110/220 V, 50–60 Hz
Power
2 kW
Capacity
3000–5000 BPH
Bottle diameter
35–120 mm
Bottle height
60–200 mm
Machine size
≈ 2000 × 900 × 1600 mm (capper)
With cap elevator
≈ 3453 × 1393 × 2243 mm

Options & Packaging

Cap feeding
Elevator or vibratory bowl
Conveyor
High‑speed synchronized chain
Controls
PLC + touchscreen
Integration
Upstream fillers / downstream inspection
Notes
Performance depends on bottle/cap

Typical Applications

Beverage & Alcohol

Beer, cider, spirits, wine, soft drinks.

Cosmetics & Personal Care

Sprays, lotions, shampoos, serums.

Household & Chemical

Cleaners, oils and speciality products.

What’s Included

  • Automatic spindle/belt capper base
  • Guiding conveyor & side belts
  • Touchscreen control
  • Optional cap elevator or vibratory bowl (per order)
  • Operation & maintenance manual
    •

Configure Your Machine


Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

  • Bottle Ø & height; material
  • Cap type & size (screw)
  • Target output (BPH) & torque requirement
  • Utilities (power/air)
  • Conveyor height & change parts needed

Enquire now
